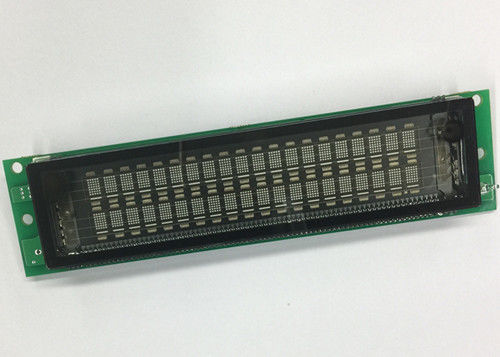

VFD Display Control Module , USB Dot Matrix Display 20S207DA1A 5Vdc Power
  • VFD Display Control Module , USB Dot Matrix Display 20S207DA1A 5Vdc Power
  • VFD Display Control Module , USB Dot Matrix Display 20S207DA1A 5Vdc Power

VFD Display Control Module , USB Dot Matrix Display 20S207DA1A 5Vdc Power

Place of Origin China
Brand Name SSOT
Certification ISO9001
Model Number 20S207DA1A
Product Details
Pattern:
5*7 Dot Matrix, Cursor, 20*2 Characters
Font:
ASCII + European
Interface:
Parallel & Serial
Power:
5Vdc
PCB Size:
155*39 MM
Display Area:
102.3*17.5 MM
Color:
Green (x:0.250; Y:0.439)
Luminance:
700 CD
Operating Temperature:
-20 ~ 70 ℃
Operating Humidity:
0 ~85 %
Storage Temperature:
-40 ~ 85 ℃
Storage Humidity:
0 ~ 90%
High Light:

usb dot matrix display

,

dot matrix display board

Payment & Shipping Terms
Minimum Order Quantity
100
Price
Negotiable
Packaging Details
Carton box L474 * W379 * H416
Delivery Time
28~42 days. FOB Shanghai
Payment Terms
TT; Paypal
Supply Ability
10,000 pcs / month
Product Description

VFD dot matrix Display module 20 characters 2 lines 20S207DA1A






Features:

  • Vacuum Fluorescent Display: Self Luminous, High Quality and Readable Display
  • +5VDC Single Power Supply: Built in DC/DC Converter
  • Both Parallel and Serial Interface: In case of Serial Interfacing Baud-rate can be selectable from 1,200 to 9,600 bps.
  • Two kinds of CG-ROM Font: ASCII (96 characters) + European (122 characters)
  • User Definable CG-RAM Font: 7 Kinds Available
  • Dimming Control: 6 Levels (0%, 20%, 40%, 60%, 80% and 100%) of Brightness
  • Character Format: 5 * 7 Dot Matrix






Application:

  • Measuring equipment display, test equipment display, instrument display






Packaging and delivery:

  • Antistatic bag + carton box
  • Sea freight or air freight
  • Express: Fedex, DHL etc...






Advantages:

  • Self-luminous, high brightness and contrast ratio, wide viewing angle
  • Multi color variety
  • Long service time and high reliability
  • Simple interface and high speed data write in capability, quick response time






About us

Our company is located in Shanghai China, and specialized in the designing and manufacturing VFD display, LED display

Our products are widely used as industrial control display, Medical instruments display, POS customer display and peripheral devices, Cash Drawer display, automotive display, Set-Top-Box display, DC Power display, Scale display, meters display, Programmable Keyboards display etc.

Our customers are widely spread at North America, Europe, Japan, Korea, South-east Asia, India, Middle East, Australia, South America, etc.

With the goals of quality and adaptability in the market competition, as well as the ability of developing new products in short periods. we welcome interested companies worldwide to inquire our products

We are looking forward to cooperation with you in the near future.












FAQ

Is your parts new and original?

Answer: Yes, our parts could accept any kinds of testing, if there is any quality problem we will take responsibility.

What is your warranty?

Answer: Within one year after package have been received.

How to pay the order?

Answer: We could accept TT, Escrow, Paypal. After the order have been confirmed the invoice will be sent for reference. Then make payment as the way you like, as soon as the payment have been confirmed, we will arrange shipment within 3 days.

Quality problems

Answer: If there is any quality problem or question, we could offer technical support or return service.

What is your lead time?

Answer: 6 weeks; For in-stock products. Lead time is 3 days after payment have been confirmed.

6.May I have a sample for testing?

Answer: Yes, only to pay shipping cost, free samples would be sent for testing.

7.Shipping:

FedEx, DHL, TNT
