Self Luminous Vacuum Display , Dot Matrix Display Module 20T201DA2 Wide Viewing Angle
  • Self Luminous Vacuum Display , Dot Matrix Display Module 20T201DA2 Wide Viewing Angle

Self Luminous Vacuum Display , Dot Matrix Display Module 20T201DA2 Wide Viewing Angle

Place of Origin China
Brand Name SSOT
Certification ISO9001
Model Number 20T201DA2
Product Details
Pattern:
5*7 Dot Matrix, Cursors, 20*2 Characters
Font:
ASCII + Japanese And ASCII + European
Interface:
Serial
Power:
5Vdc
PCB Size:
115*48 MM
Display Area:
78.55*15.2 MM
Color:
Green (x:0.250; Y:0.439)
Luminance:
700 CD
Operating Temperature:
-20 ~ 70 ℃
Operating Humidity:
0 ~85 %
Storage Temperature:
-40 ~ 85 ℃
Storage Humidity:
0 ~ 90%
High Light:

usb dot matrix display

,

dot matrix display board

Payment & Shipping Terms
Minimum Order Quantity
100
Price
Negotiable
Packaging Details
Carton box L474 * W379 * H416
Delivery Time
28~42 days. FOB Shanghai
Payment Terms
TT; Paypal
Supply Ability
10,000 pcs / month
Product Description

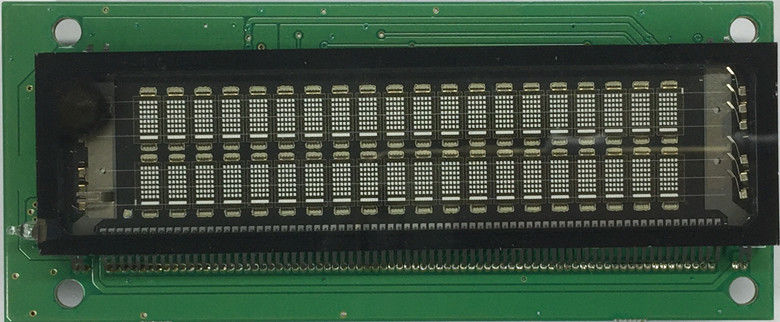

VFD dot matrix Display module 20 characters 2 lines 20T201DA2






Features:

  • The MCU can control this module by synchronous serial input interface.
  • Since a DC/DC converter is used, only +5V power source is required to operate the module.
  • One chip controller mounted on the module includes the character generator ROM (CG-ROM) of ASCII, European and Japanese Katakana characters.
  • Continuous brightness level can be selected by dimming function.
  • Characters are provided with a 5x7 dot matrix.
  • The module has up to 8 user definable characters.(CG-RAM function)






Application:

  • Measuring equipment display, test equipment display, instrument display






Packaging and delivery:

  • Antistatic bag + carton box
  • Sea freight or air freight
  • Express: Fedex, DHL etc...






Advantages:

  • Self-luminous, high brightness and contrast ratio, wide viewing angle
  • Multi color variety
  • Long service time and high reliability
  • Simple interface and high speed data write in capability, quick response time
