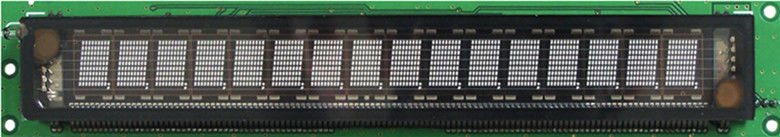

9x9 Dot Matrix VFD Display Module , Character Display Module DP Comma 16L103DK1R
  • 9x9 Dot Matrix VFD Display Module , Character Display Module DP Comma 16L103DK1R

9x9 Dot Matrix VFD Display Module , Character Display Module DP Comma 16L103DK1R

Place of Origin China
Brand Name SSOT
Certification ISO9001
Model Number 16L103DK1R
Product Details
9*9 Dot Matrix, Com, Dp, 16 Characters 1 Line
ASCII And KSC-5601
PCB Size:
225*40 MM
Display Area:
173.87*13.55 MM
Blue-green (x:0.250; Y:0.439)
700 CD
Operating Temperature:
0 ~ 70 ℃
Operating Humidity:
30 ~ 85%
Storage Temperature:
-40 ~ 85 ℃
Storage Humidity:
30 ~ 90%
High Light:

character display module


vfd module

Payment & Shipping Terms
Minimum Order Quantity
Packaging Details
Carton box L474 * W379 * H416
Delivery Time
28~42 days
Payment Terms
TT; Paypal
Supply Ability
10,000 pcs / month
Product Description

VFD Display Module 9x9 dot matrix, dp, comma, 16L103DK1R




  • Vacuum Fluorescent Display: Self Luminous and Readable Display
  • +5VDC Single Power Supply: Built in DC/DC Converter
  • RS-232 Serial Interface: Baud-rate = 1,200 ~ 9,600 bps
  • Built-in CG-ROM Font Table: ASCII and KSC-5601
  • 10 Brightness Levels: 10% ~ 100%
  • Character Format: 9 * 9 Dot Matrix




  • Scales, ECR, POS, ATM, medical, communication, elevator
  • Measuring equipment display, test equipment display, instrument display
  • Information boards in hospitals, banks, complexes,buildings, stations, etc.



Packaging and delivery:

  • Antistatic bag + carton box
  • Sea freight or air freight
  • Express: Fedex, DHL etc...




  • Self-luminous, high brightness and contrast ratio, wide viewing angle
  • Multi color variety
  • Long service time and high reliability
  • Simple interface and high speed data write in capability, quick response time
