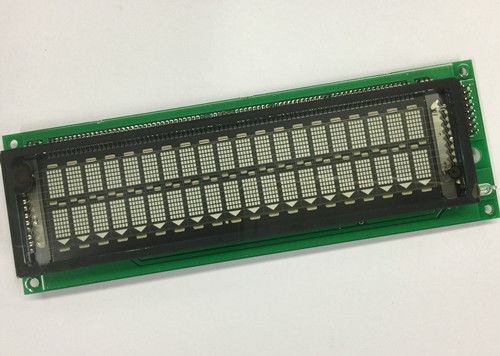

20L203DA14U USB VFD Display Dot Matrix Module 700 CD Luminance Wide Viewing Angle
  • 20L203DA14U USB VFD Display Dot Matrix Module 700 CD Luminance Wide Viewing Angle

20L203DA14U USB VFD Display Dot Matrix Module 700 CD Luminance Wide Viewing Angle

Place of Origin China
Brand Name SSOT
Certification ISO9001
Model Number 20L203DA14U
Product Details
Pattern:
5*7 Dot Matrix & Annunciator, 20*2 Characters
Font:
PC437, PC850, PC852, PC866, PC737, PC775, CP10 For DP86-20, PC864
Interface:
USB And RS232
Power:
5~24Vdc
PCB Size:
190*64 MM
Display Area:
146.1*29 MM
Color:
Green (x:0.250; Y:0.439)
Luminance:
700 CD
Operating Temperature:
-0 ~ 75 ℃
Operating Humidity:
30 ~ 85 %
Storage Temperature:
-40 ~ 85 ℃
Storage Humidity:
30 ~ 90%
High Light:

usb character display

,

usb dot matrix display

,

USB VFD Display Dot Matrix Module

Payment & Shipping Terms
Minimum Order Quantity
100
Price
Negotiable
Packaging Details
Carton box L474 * W379 * H416
Delivery Time
28~42 days. FOB Shanghai
Payment Terms
TT; Paypal
Supply Ability
10,000 pcs / month
Product Description

USB VFD dot matrix Display module 20 characters 2 lines 20L203DA14U








Features:

  • Attractive and Readable Display: 5*7 Dot Matrix Type VFD
  • Wide Operating Voltage (Free Voltage Input without any Jumper Settings): +5VDC ~ +24VDC
  • Single Wired Interface: Asynchronous Serial (RS-232C) and USB specification Ver 2.0 full speed transition method, Baud-rate: 2400 ~ 19200 bps
  • 8 kinds of CG-ROM Font: PC437, PC850, PC852, PC866, PC737, PC775, CP10 for DP86-20 and PC864
  • Brightness Level: Four Levels (40%, 60%, 80% and 100%)






Application:

  • Scales, ECR, POS, ATM, medical, communication, elevator
  • Measuring equipment display, test equipment display, instrument display






Packaging and delivery:

  • Antistatic bag + carton box
  • Sea freight or air freight
  • Express: Fedex, DHL etc...






Advantages:

  • Self-luminous, high brightness and contrast ratio, wide viewing angle
  • Multi color variety
  • Long service time and high reliability
  • Simple interface and high speed data write in capability, quick response time






About us

Our company is located in Shanghai China, and specialized in the designing and manufacturing VFD display, LED display

Our products are widely used as industrial control display, Medical instruments display, POS customer display and peripheral devices, Cash Drawer display, automotive display, Set-Top-Box display, DC Power display, Scale display, meters display, Programmable Keyboards display etc.

Our customers are widely spread at North America, Europe, Japan, Korea, South-east Asia, India, Middle East, Australia, South America, etc.

With the goals of quality and adaptability in the market competition, as well as the ability of developing new products in short periods. we welcome interested companies worldwide to inquire our products

We are looking forward to cooperation with you in the near future.












FAQ

Is your parts new and original?

Answer: Yes, our parts could accept any kinds of testing, if there is any quality problem we will take responsibility.

What is your warranty?

Answer: Within one year after package have been received.

How to pay the order?

Answer: We could accept TT, Escrow, Paypal. After the order have been confirmed the invoice will be sent for reference. Then make payment as the way you like, as soon as the payment have been confirmed, we will arrange shipment within 3 days.

Quality problems

Answer: If there is any quality problem or question, we could offer technical support or return service.

What is your lead time?

Answer: 6 weeks; For in-stock products. Lead time is 3 days after payment have been confirmed.

6. May I have a sample for testing?

Answer: Yes, only to pay shipping cost, free samples would be sent for testing.

7. Shipping:

FedEx, DHL, TNT
