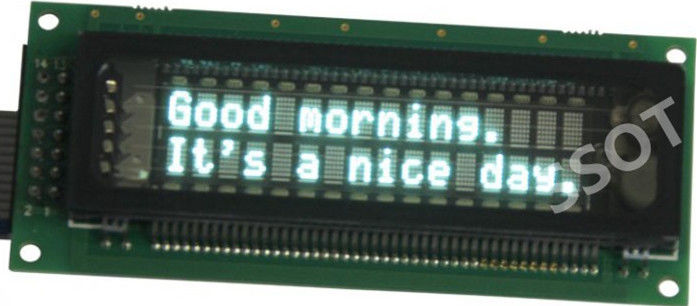

Self - Luminous VFD Display Module , Character Display Module 16T202DA1J
  • Self - Luminous VFD Display Module , Character Display Module 16T202DA1J
  • Self - Luminous VFD Display Module , Character Display Module 16T202DA1J

Self - Luminous VFD Display Module , Character Display Module 16T202DA1J

Place of Origin China
Brand Name SSOT
Certification ISO9001
Model Number 16T202DA1J
Product Details
Pattern:
5*7 Dot Matrix, 16*2 Characters
Font:
ASCII + Japanese + 8 User-definable Characters
Interface:
LCD Compatible, M68, I80
Power:
5Vdc
PCB Size:
85*36*19.5 MM
Display Area:
51.76*11.09 MM
Color:
Green (x:0.250; Y:0.439)
Luminance:
700 CD
Operating Temperature:
-40 ~ 85 ℃
Operating Humidity:
0 ~85 %
Storage Temperature:
-50 ~ 85 ℃
Storage Humidity:
0 ~ 95%
High Light:

dot matrix display module

,

graphic display module

Payment & Shipping Terms
Minimum Order Quantity
100
Price
Negotiable
Packaging Details
Carton box L474 * W379 * H416
Delivery Time
28~42 days. FOB Shanghai
Payment Terms
TT; Paypal
Supply Ability
10,000 pcs / month
Product Description

Vacuum Fluorescent Display Module 16 characters 2 lines 16T202DA1J​








Features:

  • LCD Compatible: drop-in-replacement (same interface and mechanical dimension as LCD module)
  • Readable display: 5*7 dot matrix type Vacuum Fluorescent Display
  • Compact and lightweight: flat panel (VFD) and surface mount technology
  • 5V single power supply
  • Brightness level: adjustable into 4 levels (25%, 50%, 75% and 100%) by software command
  • Support CG-RAM fonts and CG-ROM: 8 user-definable characters (volatile) and 240 masked CG-ROM fonts






Application:

  • Measuring equipment display, test equipment display, instrument display






Packaging and delivery:

  • Antistatic bag + carton box
  • Sea freight or air freight
  • Express: Fedex, DHL etc...






Advantages:

  • Self-luminous, high brightness and contrast ratio, wide viewing angle
  • Multi color variety
  • Long service time and high reliability
  • Simple interface and high speed data write in capability, quick response time
